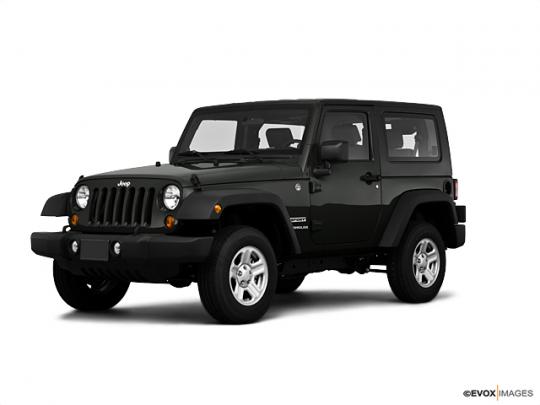

2010 Jeep Wrangler

Vehicle Overview Vehicle Specifications Specs Photos & Videos Recalls

Vehicle Overview

Popular VINs

1J4BA3H17AL230956
1J4BA3H17AL100238

Year: 2010
Make: Jeep
Model: Wrangler
Trims Available: 8
Made In: UNITED STATES
Body & Doors: SPORT UTILITY 2-DR
Engine: 3.8L V6 OHV 12V
Transmission: 4-Speed Automatic | 6-Speed Manual
Driveline: 4WD
Seating: 4
MSRP: $21,165 USD
MPG: 15 miles/gallon/19 miles/gallon
Tires: 225/75R16
Tank Size: 18.60 gallon

Popular VINs

1J4BA3H17AL230956
1J4BA3H17AL100238

Vehicle Specifications

Year:

2010

Make:

Jeep

Model:

Wrangler

Trim Level:

Sport 4WD

Manufactured In:

UNITED STATES

Production Seq. Number:

110508

Body Style:

SPORT UTILITY 2-DR

Engine Type:

3.8L V6 OHV 12V

Transmission-short:

4A | 6M

Transmission-long:

4-Speed Automatic | 6-Speed Manual

Driveline:

4WD

Tank:

18.60 gallon

Fuel Economy-city:

15 miles/gallon

Fuel Economy-highway:

19 miles/gallon

Anti-Brake System:

4-Wheel ABS

Steering Type:

Recirc

Front Brake Type:

Disc

Rear Brake Type:

Disc

Turning Diameter:

34.90 in.

Front Suspension:

Live

Rear Suspension:

Live

Front Spring Type:

Coil

Rear Spring Type:

Coil

Tires:

225/75R16

Front Headroom:

41.30 in.

Rear Headroom:

40.30 in.

Front Legroom:

41.00 in.

Rear Legroom:

35.60 in.

Front Shoulder Room:

55.80 in.

Rear Shoulder Room:

61.60 in.

Front Hip Room:

55.60 in.

Rear Hip Room:

44.70 in.

Interior Trim:

Dark Khaki/Medium Khaki Cloth Interior | Dark Slate Gray/Medium Slate Gray Cloth Interior

Exterior Color:

Curb Weight-automatic:

3785 lbs

Curb Weight-manual:

3760 lbs

Overall Length:

152.80 in.

Overall Width:

73.70 in.

Overall Height:

70.90 in.

Wheelbase:

95.40 in.

Ground Clearance:

8.80 in.

Track Front:

61.90 in.

Track Rear:

61.90 in.

Cargo Length:

Not on File

Width at Wheelwell:

44.70 in.

Width at Wall:

58.70 in.

Depth:

Not on File

Standard Seating:

Optional Seating:

Not on File

Passenger Volume:

102.90 cu.ft.

Cargo Volume:

17.20 cu.ft.

Standard Towing:

1000 lbs

Maximum Towing:

2000 lbs

Standard Payload:

1000 lbs

Maximum Payload:

1000 lbs

Standard GVWR:

4760 lbs

Maximum GVWR:

4785 lbs

Basic-duration:

36 month

Basic-distance:

36,000 mile

Powertrain-duration:

60 month

Powertrain-distance:

100,000 mile

Rust-duration:

60 month

Rust-distance:

100,000 mile

MSRP:

$21,165 USD

Dealer Invoice:

$20,614 USD

Destination Charge:

$750 USD

Child Safety Door Locks:

Not on File

Locking Pickup Truck Tailgate:

Not on File

Power Door Locks:

Opt.

Vehicle Anti-Theft:

Std.

4WD/AWD:

Std.

ABS Brakes:

Std.

Automatic Load-Leveling:

Not on File

Electronic Brake Assistance:

Std.

Limited Slip Differential:

Opt.

Locking Differential:

Not on File

Traction Control:

Std.

Vehicle Stability Control System:

Std.

Driver Airbag:

Std.

Front Side Airbag:

Opt.

Front Side Airbag with Head Protection:

Not on File

Passenger Airbag:

Std.

Side Head Curtain Airbag:

Not on File

Second Row Side Airbag:

Not on File

Second Row Side Airbag with Head Protection:

Not on File

Electronic Parking Aid:

Not on File

First Aid Kit:

Not on File

Trunk Anti-Trap Device:

Not on File

Keyless Entry:

Opt.

Remote Ignition:

Not on File

Air Conditioning:

Opt.

Separate Driver/Front Passenger Climate Controls:

Not on File

Cruise Control:

Opt.

Tachometer:

Std.

Tilt Steering:

Std.

Tilt Steering Column:

Std.

Heated Steering Wheel:

Not on File

Leather Steering Wheel:

Opt.

Steering Wheel Mounted Controls:

Opt.

Telescopic Steering Column:

Not on File

Adjustable Foot Pedals:

Not on File

Genuine Wood Trim:

Not on File

Tire Pressure Monitor:

Std.

Trip Computer:

Not on File

AM/FM Radio:

Std.

Cassette Player:

Not on File

CD Player:

Std.

CD Changer:

Opt.

DVD Player:

Opt.

Voice Activated Telephone:

Not on File

Navigation Aid:

Not on File

Second Row Sound Controls:

Not on File

Subwoofer:

Opt.

Telematics System:

Not on File

Driver Multi-Adjustable Power Seat:

Not on File

Front Cooled Seat:

Not on File

Front Heated Seat:

Not on File

Front Power Lumbar Support:

Not on File

Front Power Memory Seat:

Not on File

Front Split Bench Seat:

Not on File

Leather Seat:

Not on File

Passenger Multi-Adjustable Power Seat:

Not on File

Second Row Folding Seat:

Std.

Second Row Heated Seat:

Not on File

Second Row Multi-Adjustable Power Seat:

Not on File

Second Row Removable Seat:

Std.

Third Row Removable Seat:

Not on File

Cargo Area Cover:

Not on File

Cargo Area Tiedowns:

Std.

Cargo Net:

Not on File

Load Bearing Exterior Rack:

Not on File

Pickup Truck Bed Liner:

Not on File

Power Sunroof:

Not on File

Removable Top:

Std.

Manual Sunroof:

Not on File

Automatic Headlights:

Not on File

Daytime Running Lights:

Not on File

Fog Lights:

Std.

High Intensity Discharge Headlights:

Not on File

Pickup Truck Cargo Box Light:

Not on File

Running Boards:

Opt.

Front Air Dam:

Not on File

Rear Spoiler:

Not on File

Skid Plate:

Std.

Splash Guards:

Not on File

Wind Deflector for Convertibles:

Not on File

Power Sliding Side Van Door:

Not on File

Power Trunk Lid:

Not on File

Alloy Wheels:

Opt.

Chrome Wheels:

Not on File

Full Size Spare Tire:

Std.

Run Flat Tires:

Not on File

Steel Wheels:

Std.

Power Windows:

Opt.

Electrochromic Exterior Rearview Mirror:

Not on File

Glass Rear Window on Convertible:

Opt.

Heated Exterior Mirror:

Not on File

Electrochromic Interior Rearview Mirror:

Not on File

Power Adjustable Exterior Mirror:

Not on File

Deep Tinted Glass:

Opt.

Interval Wipers:

Std.

Rain Sensing Wipers:

Not on File

Rear Window Defogger:

Opt.

Rear Wiper:

Opt.

Sliding Rear Pickup Truck Window:

Not on File

Tow Hitch Receiver:

Opt.

Towing Preparation Package:

Opt.

Engine Compressor Type:

Not on File

Engine Fuel Type:

Not on File

Tier Five - Vehicle Market Perception:

Not on File

Doors:

Not on File

Vehicle Style:

Not on File

Vehicle Type:

Not on File

Engine Cylinder:

Not on File

Engine Size:

Not on File

Vehicle Size:

Not on File

Horsepower:

Not on File

Trims Available:

Not on File

Drivetrain:

Not on File

Safety & Recalls

Recall 132559 started on 01/09/2018 by MFR effecting 328,177 units.

Summary: Chrysler (FCA US LLC) is recalling certain 2009-2013 Jeep Wrangler, Chrysler 300, Dodge Challenger and Dodge Charger vehicles, and 2009-2011 Dodge Dakota vehicles sold, or ever registered, in the states of Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands or "Zone A." Additionally, Chrysler is recalling certain 2009-2010 RAM 4500 Cab Chassis, RAM 5500 Cab Chassis, RAM 3500 Cab Chassis, Jeep Wrangler, Chrysler 300, Dodge Dakota, Dodge Challenger, and Dodge Charger vehicles ever registered in the states of Arizona, Arkansas, Delaware, District of Columbia, Illinois, Indiana, Kansas, Kentucky, Maryland, Missouri, Nebraska, Nevada, New Jersey, New Mexico, North Carolina, Ohio, Oklahoma, Pennsylvania, Tennessee, Virginia, and West Virginia or "Zone B." Chrysler is also recalling certain 2009 RAM 3500, RAM 2500, RAM 4500 Cab Chassis, RAM 5500 Cab Chassis, Dodge Durango, Chrysler Aspen, RAM 3500 Cab Chassis, Jeep Wrangler, Chrysler 300, Dodge Dakota, Dodge Challenger, and Dodge Charger vehicles ever registered in the states of Alaska, Colorado, Connecticut, Idaho, Iowa, Maine, Massachusetts, Michigan, Minnesota, Montana, New Hampshire, New York, North Dakota, Oregon, Rhode Island, South Dakota, Utah, Vermont, Washington, Wisconsin, and Wyoming. In the event of a crash necessitating deployment of the passenger frontal air bag, these passenger air bag inflator may explode due to propellant degradation occurring after long-term exposure to absolute humidity and temperature cycling.
Consequence: An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy: Chrysler will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began February 28, 2018. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is U03.
Notes: Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Recall 108018 started on 05/24/2016 by ODI effecting 4,648,270 units.

Summary: Chrysler (FCA US LLC) expanded the affected population to include 73,712 2005-2009 RAM 2500 trucks produced at the St. Louis North Assembly Plant. With this change, Chrysler is recalling certain model year 2004-2008 RAM 1500, 2005-2009 RAM 2500, 2006-2009 RAM 3500, 2007-2010 RAM 3500 Cab Chassis, 2008-2010 RAM 4500 and 5500 Cab Chassis, 2004-2009 Dodge Durango, 2007-2009 Chrysler Aspen, 2007-2012 Jeep Wrangler, 2008-2012 Dodge Challenger, 2005-2008 Dodge Magnum, 2005-2012 Chrysler 300, 2006-2012 Dodge Charger, 2005-2011 Dodge Dakota, and 2006-2009 Mitsubishi Raider vehicles originally sold, or ever registered, in AL, CA, FL, GA, HI, LA, MS, SC, TX, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands, or "Zone A." Additionally, unless included in "Zone A" above, Chrysler is also recalling 2004-2008 RAM 1500, 2005-2009 RAM 2500, 2006-2009 RAM 3500, 2007-2009 RAM 3500 Cab Chassis, 2008-2009 RAM 4500 and 5500 Cab Chassis, 2004-2009 Dodge Durango, 2007-2009 Chrysler Aspen, 2007-2009 Jeep Wrangler, 2008-2009 Dodge Challenger, 2005-2008 Dodge Magnum, 2005-2009 Chrysler 300, 2006-2009 Dodge Charger, 2005-2009 Dodge Dakota and 2006-2009 Mitsubishi Raider vehicles originally sold, or ever registered, in AZ, AR, DE, Washington D.C., IL, IN, KS, KY, MD, MO, NE, NV, NJ, NM, NC, OH, OK, PA, TN, VA, and WV, or "Zone B." Lastly, unless included in "Zone A" or "Zone B" above, Chrysler is recalling certain 2005-2008 RAM 2500, 2006-2008 RAM 3500, 2007-2008 RAM 3500 Cab Chassis, 2008 RAM 4500 and 5500 Cab Chassis, 2004-2008 Dodge Durango, 2007-2008 Chrysler Aspen, 2007-2008 Jeep Wrangler, 2008 Dodge Challenger, 2005-2008 Dodge Magnum, 2005-2008 Chrysler 300, 2006-2008 Dodge Charger, 2005-2008 Dodge Dakota, and 2006-2008 Mitsubishi Raider vehicles originally sold, or registered, in AK, CO, CT, ID, IA, ME, MA, MI, MN, MT, NH, NY, ND, OR, RI, SD, UT, VT, WA, WI, and WY.
Consequence: These vehicles are equipped with certain air bag inflators assembled as part of the passenger frontal air bag modules, and used as original equipment or replacement equipment. These inflators may rupture due to propellant degradation occurring after long-term exposure to absolute humidity and temperature cycling. An inflator rupture may result in metal fragments striking the vehicle occupants resulting in serious injury or death.
Remedy: Chrysler will notify the Chrysler, Dodge, Jeep and RAM owners. Mitsubishi owners will be notified by their company. Dealers will replace the passenger frontal air bag inflator, free of charge. The recall began on March 27, 2017. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S43. Note: This recall supersedes recall 14V-7700.
Notes: Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Recall 116982 started on 05/11/2016 by ODI effecting 388,532 units.

Summary: Chrysler (FCA US LLC) is recalling certain model year 2007-2010 Jeep Wrangler JK vehicles manufactured March 2, 2006, to August 13, 2010. The clockspring assembly may become contaminated with dust and cause the air bag circuit to fail.
Consequence: Failure of the air bag circuit may prevent the driver's frontal air bag from deploying in the event of a crash, increasing the risk of injury.
Remedy: Chrysler will notify owners, and dealers will replace the clockspring, wheel back cover, and column shroud, free of charge. The recall began on December 14, 2016. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S33.
Notes: Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Recall 96351 started on 05/07/2013 by ODI effecting 5,440 units.

Summary: Chrysler Group LLC (Chrysler) is recalling certain model year 2008-2012 Jeep Wrangler right-hand drive vehicles manufactured February 1, 2007, through October 10, 2011. The affected vehicles have airbag clockspring assemblies that could experience broken airbag circuits.
Consequence: In the event of a crash necessitating airbag deployment, a broken electrical circuit in the airbag clockspring wiring assembly can lead to non-deployment of the driver-side frontal airbag and will not be able to properly protect the driver, increasing the risk of injuries.
Remedy: Chrysler will notify owners, and dealers will replace the clockspring and add a steering wheel dust shield, free of charge. The recall began on June 10, 2013. Owners may contact Chrysler at 1-800-247-9753. This recall supercedes NHTSA recall 11V-528. Chrysler's recall campaign number is M31.
Notes: Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Recall 95805 started on 02/25/2013 by MFR effecting 15,836 units.

Summary: Quadratec, Inc. is recalling certain aftermarket accessory, driver-side, Ultimate Floor Liners part numbers 14254.0301 07, 14254.0301 08, 14254.0301Q, 14254.0302 07, 14254.0302 08, 14254.0302Q, 14254.0303 07, 14254.0303 08, 14254.0303Q, 14254.0309 07, 14254.0309 08, and 14254.0309Q sold from May 1, 2012, through February 14, 2013. The liners are for use in 2007-2013 Jeep Wranglers. The anchor point for the affected floor liners may tear during use, particularly when exposed to high temperatures. The tearing may allow the floor liner to shift forward.
Consequence: If the liner shifts forward it may impede the operation of the accelerator and possibly lead to unintended acceleration, which may increase the risk of a crash.
Remedy: Quadratec will notify owners and either exchange the liners or provide them with a hook guard kit to help secure the driver-side mat, free of charge. The recall began on April 4, 2013. Owners may contact Quadratec at 1-800-463-2998 or info@quadratec.com.
Notes: This recall only affects Quadratec floor liners and is not being conducted by Chrysler/Jeep.Quadratec's recall campaign number is 13-01.Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.

Recall 452 started on 05/16/2012 by ODI effecting 65,246 units.

Summary: CHRYSLER IS RECALLING CERTAIN MODEL YEAR 2010 JEEP WRANGLER VEHICLES EQUIPPED WITH AN AUTOMATIC TRANSMISSION. THE TRANSMISSION SKID PLATE, WHICH IS CLOSE TO THE CATALYTIC CONVERTER, CAN COLLECT DEBRIS.
Consequence: IF THIS OCCURS, THE DEBRIS CAN IGNITE WITHOUT WARNING, RESULTING IN A VEHICLE FIRE.
Remedy: CHRYSLER WILL NOTIFY OWNERS, AND DEALERS WILL REPLACE THE SKID PLATE WITH A SKID BAR, FREE OF CHARGE. OWNERS MAY CONTACT CHRYSLER AT 1-800-853-1403.
Notes: CHRYSLER¿S RECALL NUMBER IS M22.OWNERS MAY ALSO CONTACT THE NATIONAL HIGHWAY TRAFFIC SAFETY ADMINISTRATION¿S VEHICLE SAFETY HOTLINE AT 1-888-327-4236 (TTY 1-800-424-9153), OR GO TO HTTP://WWW.SAFERCAR.GOV.

Recall 95152 started on 11/02/2011 by ODI effecting 5,437 units.

Summary: CHRYSLER IS RECALLING CERTAIN MODEL YEAR 2008-2012 RIGHT HAND DRIVE (RHD) JEEP WRANGLER VEHICLES MANUFACTURED FROM FEBRUARY 1, 2007, THROUGH OCTOBER 10, 2011. SOME VEHICLES MAY BE EQUIPPED WITH DRIVER'S AIRBAG CLOCKSPRING ASSEMBLIES THAT COULD EXPERIENCE A COMPROMISED AIRBAG CIRCUIT RESULTING IN AN AIRBAG LAMP ILLUMINATION, WHICH INDICATES THAT THE AIRBAG MAY NOT DEPLOY.
Consequence: A BROKEN ELECTRICAL CIRCUIT IN THE AIRBAG CLOCKSPRING WIRING ASSEMBLY CAN LEAD TO NON-DEPLOYMENT OF THE DRIVER FRONTAL AIRBAG AND WILL NOT BE ABLE TO PROPERLY PROTECT THE DRIVER IN THE EVENT OF A CRASH, INCREASING THE RISK OF INJURIES.
Remedy: CHRYSLER WILL NOTIFY OWNERS AND REMEDY THE VEHICLES AS NECESSARY FREE OF CHARGE. CHRYSLER WILL MAIL TO OWNERS AN INTERIM NOTIFICATION DURING MARCH 2012. OWNERS MAY CONTACT CHRYSLER AT 1-800-853-1403.
Notes: CHRYSLER'S RECALL NUMBER IS L37.OWNERS MAY ALSO CONTACT THE NATIONAL HIGHWAY TRAFFIC SAFETY ADMINISTRATION'S VEHICLE SAFETY HOTLINE AT 1-888-327-4236 (TTY 1-800-424-9153), OR GO TO HTTP://WWW.SAFERCAR.GOV .

Recall 70260 started on 03/01/2011 by MFR effecting 18,326 units.

Summary: CHRYSLER IS RECALLING CERTAIN MODEL YEAR 2010-2011 JEEP WRANGLER VEHICLES MANUFACTURED FROM JULY 12, 2010, THROUGH SEPTEMBER 10, 2010. SOME VEHICLES MAY EXPERIENCE A DEGRADATION OF FASTENER TORQUE FOR VARIOUS FRONT AND REAR AXLE ATTACHMENTS TO THE CHASSIS MODULE.
Consequence: THIS COULD RESULT IN NOISE, OR ULTIMATELY, DEGRADATION IN STEERING AND HANDLING CHARACTERISTICS WHICH COULD LEAD TO LOSS OF DIRECTIONAL CONTROL OF THE VEHICLE INCREASING THE RISK OF A CRASH.
Remedy: DEALERS WILL RE-TORQUE ALL NINETEEN FASTENERS TO THE MAXIMUM RESIDUAL TORQUE VALUES. THIS SERVICE WILL BE PERFORMED FREE OF CHARGE. THE SAFETY RECALL BEGAN ON MARCH 24, 2011. OWNERS MAY CONTACT CHRYSLER AT 1-800-853-1403.
Notes: CHRYSLER SAFETY RECALL NO. L09.OWNERS MAY ALSO CONTACT THE NATIONAL HIGHWAY TRAFFIC SAFETY ADMINISTRATION'S VEHICLE SAFETY HOTLINE AT 1-888-327-4236 (TTY 1-800-424-9153), OR GO TO HTTP://WWW.SAFERCAR.GOV .

Recall 68818 started on 07/07/2010 by MFR effecting 20,626 units.

Summary: CHRYSLER IS RECALLING CERTAIN MODEL YEAR 2010 LEFT HAND DRIVE JEEP LIBERTY, DODGE NITRO AND RAM 1500 TRUCK; RIGHT AND LEFT HAND DRIVE JEEP WRANGLER VEHICLES. THESE VEHICLES MAY HAVE BEEN BUILT WITH AN IMPROPERLY FORMED MASTER CYLINDER TO HYDRAULIC CONTROL UNIT (HCU) BRAKE TUBE ASSEMBLY END FLARE.
Consequence: THIS COULD LEAD TO LOSS OF BRAKE FLUID AND REDUCED BRAKING PERFORMANCE INCREASING THE RISK OF A CRASH.
Remedy: DEALERS WILL REPLACE THE BRAKE TUBES FREE OF CHARGE. THE SAFETY RECALL IS EXPECTED TO BEGIN DURING AUGUST 2010. OWNERS MAY CONTACT CHRYSLER TOLL-FREE AT 1-800-853-1403.
Notes: CHRYSLER SAFETY RECALL NO. K15.OWNERS MAY ALSO CONTACT THE NATIONAL HIGHWAY TRAFFIC SAFETY ADMINISTRATION'S VEHICLE SAFETY HOTLINE AT 1-888-327-4236 (TTY 1-800-424-9153), OR GO TO HTTP://WWW.SAFERCAR.GOV .

Recall 83889 started on 06/03/2010 by MFR effecting 287,653 units.

Summary: CHRYSLER IS RECALLING CERTAIN MODEL YEAR 2007 THROUGH 2010 JEEP WRANGLER LEFT AND RIGHT HAND DRIVE PASSENGER VEHICLES MANUFACTURED FROM MAY 15, 2006 THROUGH APRIL 22, 2010. THERE MAY BE CONTACT BETWEEN THE RIGHT AND LEFT FRONT INNER FENDER LINERS AND THE RIGHT FRONT AND LEFT REAR BRAKE TUBES WHICH COULD CAUSE WEAR OF THE TUBES CAUSING A BRAKE FLUID LEAK.
Consequence: A BRAKE FLUID LEAK CAN CAUSE PARTIAL LOSS OF SERVICE BRAKES AT THE AFFECTED WHEEL INCREASING THE RISK OF A CRASH.
Remedy: CHRYSLER WILL NOTIFY OWNERS AND DEALERS WILL REPAIR THE VEHICLES FREE OF CHARGE. OWNERS MAY CONTACT CHRYSLER TOLL-FREE AT 1-800-853-1403.
Notes: CHRYSLER'S RECALL CAMPAIGN NUMBER IS K13.OWNERS MAY ALSO CONTACT THE NATIONAL HIGHWAY TRAFFIC SAFETY ADMINISTRATION'S VEHICLE SAFETY HOTLINE AT 1-888-327-4236 (TTY 1-800-424-9153), OR GO TO HTTP://WWW.SAFERCAR.GOV .

Trims and Configurations
